Protect Your Pneumatic Equipment with Genuine SMC F.R.L. Units in Malaysia
**SMC FRL Units Malaysia** are the first line of defense for your valuable pneumatic equipment. Ensure your compressed air is clean, stable, and efficient with our modular Filter, Regulator, and Lubricator (F.R.L.) systems, designed to protect your tools, cylinders, and automation components.
Genuine SMC Products
We supply authentic SMC components, ensuring Japanese quality and guaranteed performance.
Expert Technical Support
Our team will help you select the perfect F.R.L. configuration for your application.
Ready Stock in Malaysia
Fast delivery on popular SMC series to minimize your operational downtime.
The Foundation of a Reliable Compressed Air System
Poor quality compressed air is a silent threat to your operations. Contaminants like rust, water, and oil cause premature wear on expensive equipment, while unstable pressure leads to inconsistent performance. An SMC F.R.L. unit is the most effective solution to safeguard your investment.
(F) Air Filter: Removes harmful solid particles, water condensate, and oil, preventing corrosion and blockages.
(R) Pressure Regulator: Reduces high, fluctuating inlet pressure to a stable, optimal working pressure for your tools and machines.
(L) Lubricator: Injects a fine oil mist to lubricate pneumatic motors and tools, ensuring smooth operation and long service life. (Only when required)
SMC’s world-renowned modular design allows you to combine these components to meet your exact needs, saving space and simplifying maintenance.
How to Choose Your SMC F.R.L. Unit
Finding the right air preparation unit is simple. We’ve grouped our most popular SMC series by application to help you decide.
AC Series: Modular F.R.L. Combination
The AC Series is the industry standard for general-purpose pneumatics. It combines a filter, regulator, and lubricator (or just a filter-regulator) into a single, pre-assembled, and space-saving unit.
Best for: General factory automation, workshops with pneumatic tools, and any system needing complete air treatment.
Popular Configurations:

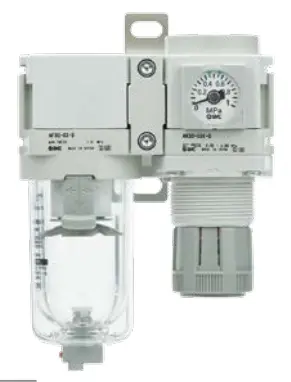

AC-B (F+R): Filter + Regulator for modern, self-lubricating systems.

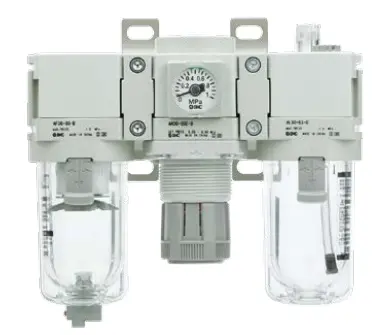

AC-A (F+R+L): Filter + Regulator + Lubricator for air tools.
Air filter, Regulator, Lubricator
Modular filter, regulator & lubricator units for clean, controlled compressed air.
Key Specs:
Sizes: AC20-D to AC60-D
Port: 1/8″ to 1″
Max Pressure: 1.0 MPa

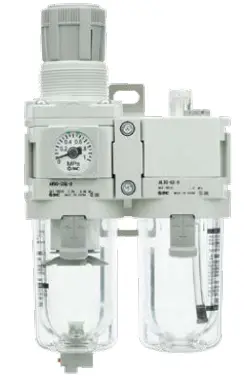

Filter Regulator + Lubricator
This compact design is ideal for air tools and general pneumatic systems in industrial automation across Malaysia.
Key Specs:
Sizes: AC20A-D to AC60A-D
Port: 1/8″ to 1″
Max Pressure: 1.0 MPa

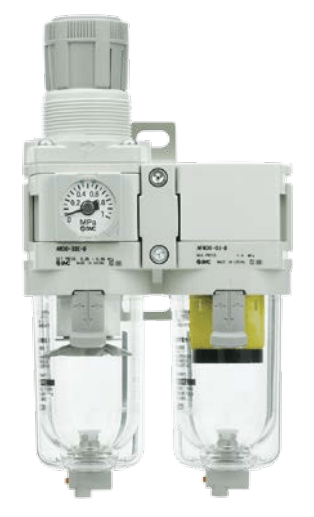

Air filter + Regulator
Modular filter, regulator & lubricator units for clean, controlled compressed air.
Key Specs:
Models: AC20B-D to AC60B-D
Port: 1/8″ to 1″
Max Pressure: 1.0 MPa

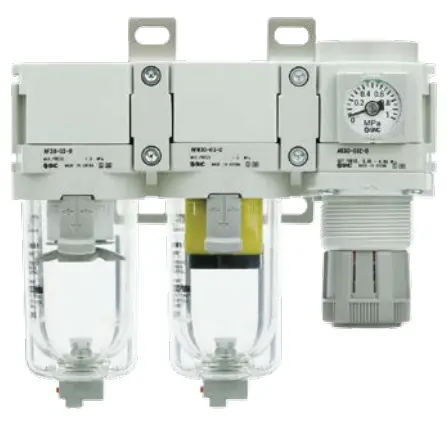

Air Filter + Mist Separator + Regulator
- Series: AC20C to 40C-D
- Port Sizes: 1/8″ to 3/4″
- Max Pressure: 1.0 MPa
- Filtration: 5 µm (filter) + 0.3 µm (mist separator)
- Air Purity: ISO 8573-1:2010 [3:4:3]
Filter Regulator (AW) + Mist Separator (AFM)
- Series: AC20D-D to AC40D-D
- Port Sizes: 1/8″ to 3/4″
- Max Pressure: 1.0 MPa
- Filtration: 5 µm (filter) + 0.3 µm (mist separator)
- Air Purity: ISO 8573-1:2010 [3:4:3]

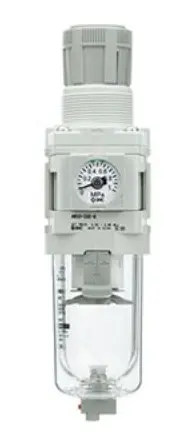

AW Series: Filter Regulator
This compact unit integrates a filter and regulator into one body. It’s the perfect choice when space is critical and no downstream lubrication is needed.
Best for: Control panels, compact machinery, and systems with pre-lubricated valves and cylinders.
Popular Models: AW20-D to AW60-D
SMC FRL Units – Key Specifications (AW20-D to AW60-D)
Port sizes: 1/8″ to 1″ (varies by model)
Fluid: Air | Temp: −5 to 60°C | Max Pressure: 1.0 MPa
Set pressure range: 0.05 – 0.85 MPa | Proof pressure: 1.5 MPa
Auto drain: N.C. 0.1–0.15 MPa | N.O. (AW30↑): 0.1 MPa
Filtration rating: 5 µm | Purity class: ISO 8573-1 [6:4:4]
Drain capacity: 8 – 45 cm³ depending on model
Bowl: Polycarbonate | Guard: Steel (AW20), Polycarbonate (AW30↑)
Construction: Relieving type | Gauge port: 1/8″
Weight range: 0.18 kg (AW20) to 1.76 kg (AW60)

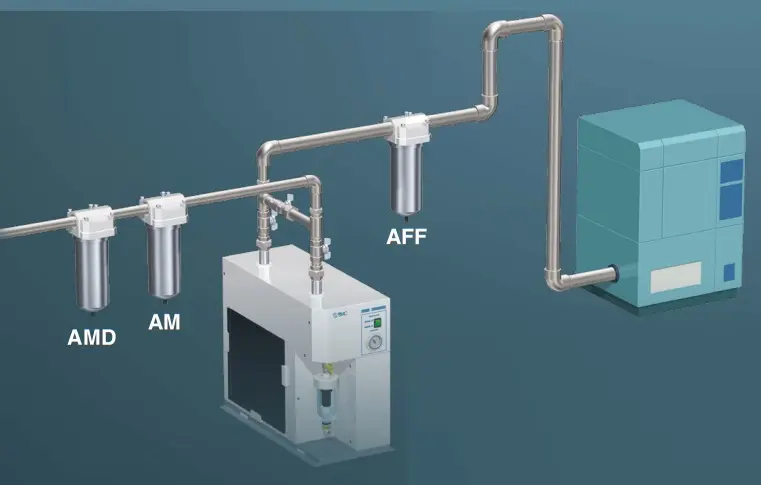

Main Line Filter | Mist Separator | Micro Mist Separator
When standard filtration isn’t enough, SMC’s high-performance main line filters and mist separators provide advanced air purification that meets stringent ISO 8573-1:2010 air quality classes. These units are ideal for protecting sensitive equipment and ensuring product quality in critical environments.
Best for: Food & beverage processing, electronics manufacturing, paint spraying, and precision instruments or sensors.
| Series | Type | Filtration Level | Description |
|---|---|---|---|
| AM | Water Separator | N/A | • Removes water droplets with 99% efficiency • Simple inline installation to reduce moisture quickly |
| AFF | Main Line Filter | 3 micron | • First-stage filtration • Removes 99% of solid particles like dust and rust |
| AM | Mist Separator | 0.3 micron | • Traps fine particles and oil mist • Recommended for secondary filtration |
| AMD | Micro Mist Separator | 0.01 micron | • Captures ultra-fine particles and oil aerosols • Delivers 99.9% removal efficiency for high-purity air |
AM Series Water Separator
Removes 99% of bulk water from compressed air – ideal for preventing moisture-related equipment damage.

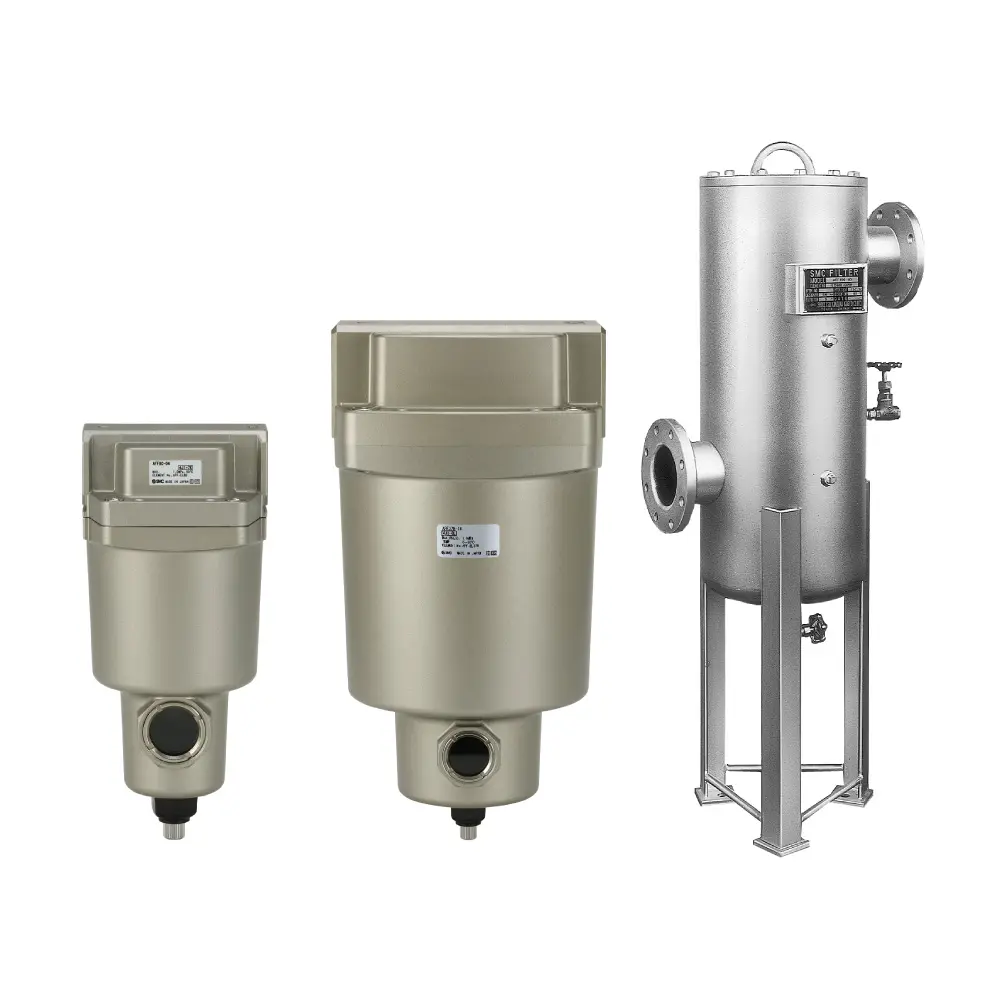

AFF Series Main Line Filter
First-stage filtration that removes large particles like rust and dust to extend the life of downstream components.

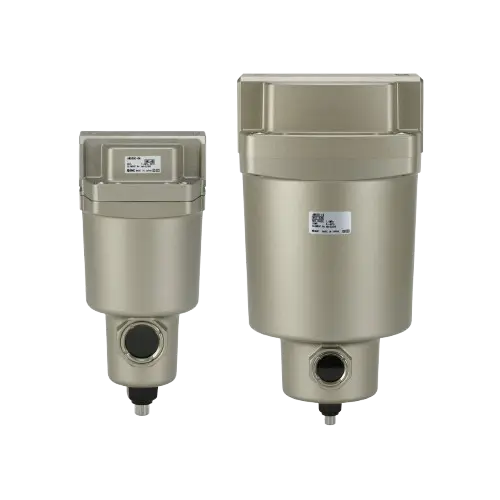

AM Series Mist Separator
Captures fine oil mist and particulates to protect pneumatic tools and ensure clean air delivery.

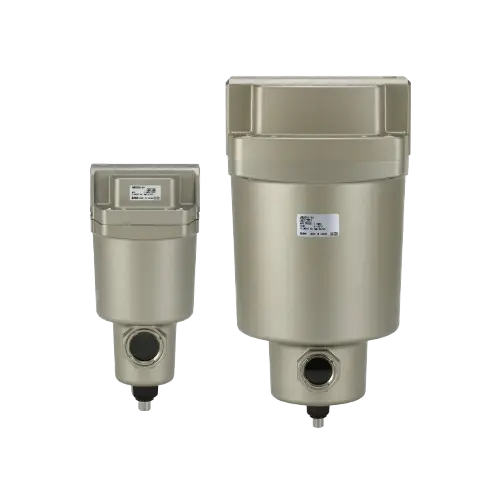

AMD Series Micro Mist Separator
High-efficiency filtration down to 0.01 micron for ultra-clean air in sensitive and high-purity applications.
F.R.L. Combination Units
For unique requirements, build your own F.R.L. system using individual SMC components.
AF Series (Air Filters): For primary particle and water removal.
AR Series (Regulators): For precise, standalone pressure control.
AL Series (Lubricators): For adding lubrication to a specific line.

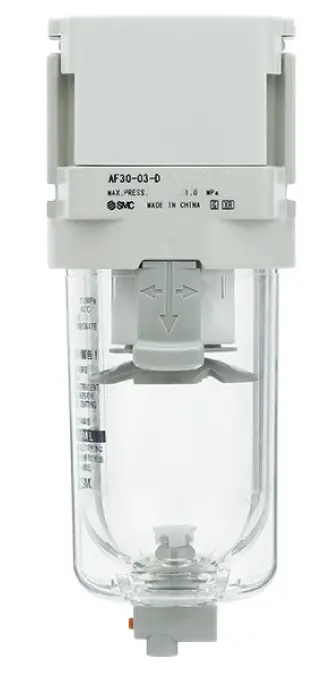

AF20-60-D Series Modular Air Filters
Efficiently remove solid particles and water from compressed air with SMC’s compact AF20D to AF60D modular filters. Designed for high performance and seamless integration in industrial FRL systems.

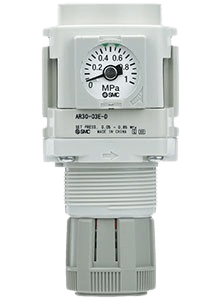

AR20-60-D Series Modular Regulator
Ensure stable and precise pressure control in your pneumatic system with SMC’s compact and reliable modular regulator.

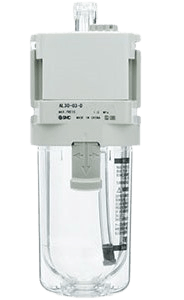

AL20-60-D Series Modular Lubricator
Extend the life of your pneumatic tools and components with consistent oil mist delivery from SMC’s modular lubricator.
Trusted by Malaysia's Industrial Leaders
From factory floors to precision labs, **SMC FRL Units Malaysia** are essential for maintaining uptime and quality across various sectors:
- Factory Automation & Production Lines
- Robotics & CNC Machining
- Packaging & Material Handling
- Automotive Assembly & Repair
- Food & Beverage Processing
- Electronics & Semiconductor
SMC FRL Units Malaysia - Frequently Asked Questions (FAQ)
How do I select the right SMC FRL unit?
Selection depends on your required air quality, flow rate (L/min), port size (e.g., 1/4", 3/8"), and operating pressure (bar/psi). For general use, the AC Series is the best starting point. For high-purity needs, use the AMD Series. Contact us with your system requirements for a precise recommendation.
What is the difference between a standard filter and a mist separator?
A standard filter (AF Series) removes solid particles and liquid water. A mist separator (AM/AMD Series) is a much finer coalescing filter that removes tiny oil aerosols (oil mist) from the air, which is critical for sensitive equipment.
Do all pneumatic systems need a lubricator (L)?
No. Most modern pneumatic valves and cylinders are “pre-lubricated” for life. Lubricators are mainly for air tools (grinders, wrenches) and pneumatic motors that require continuous oiling. Adding unnecessary oil can contaminate downstream components.
Ready to Improve Your Air System's Performance?
Don’t let poor air quality compromise your productivity. Get the right SMC F.R.L. unit for your needs. Our team provides fast quotes, expert advice, and reliable supply across Malaysia.
